Carbon steel pipe elbow
Carbon steel pipe elbow is one of carbon steel pipe fittings. The pipe fittings has pipe tee,reducer,cap,bend and cross. The carbon steel is one of material. The common material has carbon steel, stainless steel and alloy steel.
Our company main material is carbon steel, such 10# 20# A3 Q235A 20g Q345B 20G 16Mn ASTM A234 ASTM A105 st37 ASTM A403 and so on.
Now we introduce carbon steel pipe elbow:

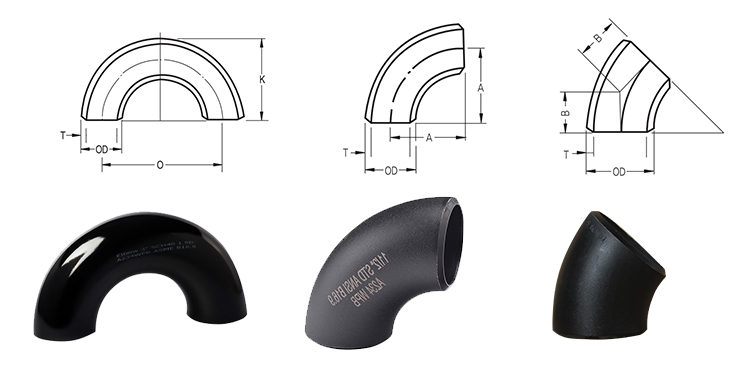

Pipe elbow has different degree,common form has 90°steel pipe elbow,45°steel pipe elbow,180°steel pipe elbow and Customized degree.
WHAT DO ELBOWS DO?
In addition to the flex purpose for your arm, elbows square measure industrial fittings that amendment the direction of piping. The connections enable you to reroute frequently rib pipes to show corners or slot in restricted area while not the expense of shopping for a pipe bender.
Standard elbows are available some totally different angles – 45°, 90°, and, though they’re less common, 22.5° angles – and may be fabricated from identical materials as the other piping. we’ve got a good choice of elbows and different fittings in stainless-steel 304 or 316.
TYPES OF ELBOWS
Although the names square measure principally obvious, there square measure some variations within the elbows that square measure price exploring.
The 90° elbow is additionally referred to as a “90° ell” (pronounced just like the letter “L”) or typically a “quarter bend” as a result of the correct angle at that flow is redirected is one quarter of 360°.
The 90° elbow is employed in areas that need a significant flip. though this might be a necessity, the rate of flow and pressure at intervals the pipe is affected. even as with any piping system, the fabric fraught hits the elbow and would love to continue within the same direction. once it meets the resistance of the elbow wall, it’s forced to alter direction (deflected) at a price to the pressure.
The internal length of the elbow plays a vicinity in this resistance. 1 / 4 bend elbow created to suit in an exceedingly tight area can produce additional pressure loss as a result of the fabric being transported needs to create the amendment earlier.
A look at the distinction between long and short radius elbowsElbows with a center-to-face dimension of 1X the pipe size square measure referred to as “short radius” bends and force a fast flip.
